Stacking door
A brand-new type of fiberglass stacking door
BLUEKOSTECH Inc.has opened new doors in the 21st century, to bring you the safest up-to-date and artificially intelligent stacking door system to the domestic market for the first time.
Applications
For all locations and areas which require an open and naturally well-lit work environment or in places that need large open access, such as Fire Stations, Workshops, Postal Distribution Centers, Warehouses or Car Showrooms.
BK 1000 SERIES
Characteristics
- Characteristics
- All doors are Translucent
- Light and Sturdy
- All sizes only require a small space
- Patented Product with stable luminosity and light penetrability
- Utilizingthe high light penetration qualities of FIBERGLASS, the door lets through up to 70% of light, which enables the workspace to stay well lit, even while the door is shut.
- The panel eliminates shadowing by evenly refracting and radiating light
- Safety
- The double-layered strengthened polyester fiberglass production has passed European safety regulations. Its high impulsive tensile modulus makes it suitable for large open access points, while the chemical properties of fiberglass make it highly resistant to saltwater, sea wind and alkaline corrosions, and is rust proof from acid rain and ozone contamination.

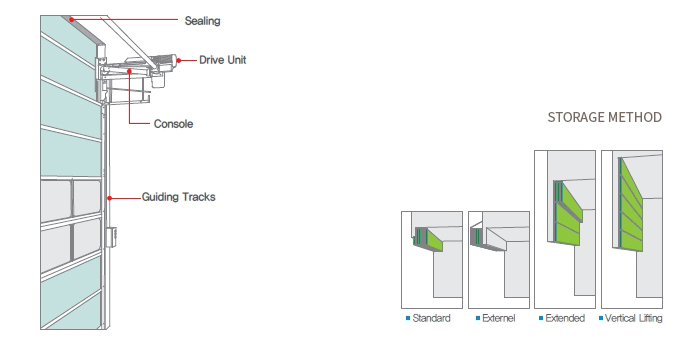

각 부의 명칭 및 특성

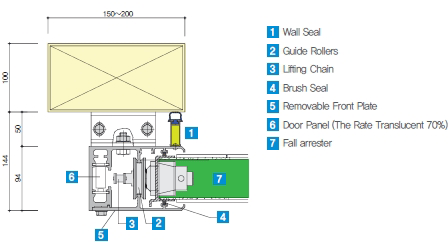

Track 상세도
Specifications
| DH-HT40 | DH-HT60 | DH-HT80 | DH-HT150 | |
| Thickness of door(mm) | 40 | 60 | 80 | 150 |
| Max.width of door(mm) | 5,500 | 57500 | 10,500 | 15,000 |
| K-value(w/m2k) | 2.84 | 2.6 | 1.97 | 1.85 |
| Translucency(%) approx | 70 | 70 | 70 | 70 |
| Requlred hlght llntel(mm) | 650 | 750/1250 | 1250 | 1400 |
| Oval acryllc windows | ● | ● | ● | ● |
| Acryllc vlson panels | ● | ● | ○ | ○ |
| Fall arrester | ● | ● | ● | ■ |
| Safety edge device | ■ | ● | ● | ● |
■ : Standard ● : Available ○ : Not Available
