OVERHEAD DOOR

An automatic door system operated by lifting it upwards to open, designed to be used in areas where large openings are needed

Pricing and Other

Classification depending on Rail Types

  • ST(Standard type)

    A regular formation with a frontal structural average length of 500mm depending on the angle of the bend.

  • ct.hct.vct(slope type)

    Applied to structures with angular ceilings.

  • LT(low head type)

    Applied with short frontal head room length - average 300mm

  • VT(vertical type)

    Applied to vertical structures - in situations where no horizontal parts are not needed

  • hT.vht(high lift type)

    Applied where the required door height is lower than the average ceiling height

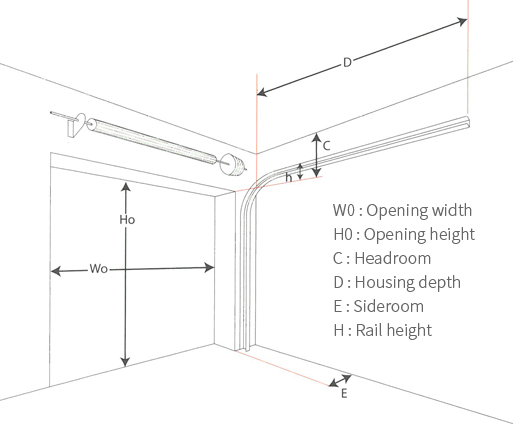

Rail Type overhead door install

HEAROOM HOUSE DEPTH SIDEROOM h
ST 500 H0+800 150 200
LT 300 H0+1700 200 50
HT h+350 (H0+800)-h 130 201~1800
VHT h+350 (H0+800)-h 130 1801~4100
CT h+400~670 H0+800 130 200
HCT h+400~670 (H0+1500)-h 130 201~180
VCT h+400~670 (h)+1500)-h 130 1801~4100
VT h0+700 550 130 -
