single type

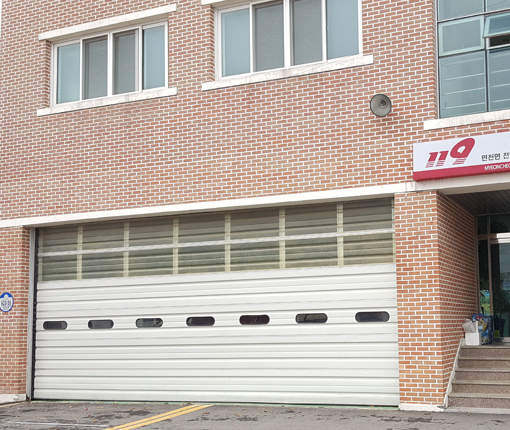

The most typical overhead DOOR

Suitable for structures which require constant safe keeping of products and equipment while allowing quick access Door panels at BLUEKOSTECH Inc. have increased structural strength with reduced panel weight and are formed, cut and produced by computer-controlled automated systems. These doors are suitable for main entrances and gangways.

Application

Warehouses, Factories, Goods Distribution Centers, Fire Stations and Power Plants

Pricing and Other Inquiries

BK 500 SERIES

Characteristics

  • The characteristic strengths of Steel and Aluminiumprovide increased durability.
  • Suitable for structures which do not require insulation.
  • These affordable entry-level doors are light-weight which making them suitable for large main doors.
  • The embossed exterior finish increases strength while providing elegant aesthetics.

Specifications

BK 500 SERIES BK 500A SERIES
PANEL High Tensile Steel Cosmetic Color Aluminium Alloy PlatesCosmetic + Aluminium extruded materials
Thickness 0.5mm Steel Single 50mm Cosmetic Width 0.8mm Aluminium Single 50mm Cosmetic Width
Maximum Safe Allowance (w) 9,000mm x (h) 7,000mm (w) 12,000mm x (h) 7,000mm
Door Unit Weight 11kg/m2 8kg/m2
Seal White Sub-Basin Seal (face 25μ rear 12μ) * Other color options must be specified in advance. White Sub-Basin Seal (face 25μ rear 12μ) * Other color options must be specified in advance.
Design Wind Pressure 55 m/sec 55 m/sec

* All overhead doors produced by BLUECOSTECH Inc. can be produced with multiple speed controls, as well as other safety sensor functions and other convenience functions. (Optional)
