Fiberglass Type
A brand new, versatile type of door.
Goes hand in hand with any style of thebuilding structure, these products are suitable for locations which aims to show off the brilliance of the building exterior while maximizing lighting and energy efficiency. Our brand new concept of overhead doors can be installed in various conditions which require a pleasant working environment while staying durable and resistant to corrosive materials and other chemicals.
Applicable Areas

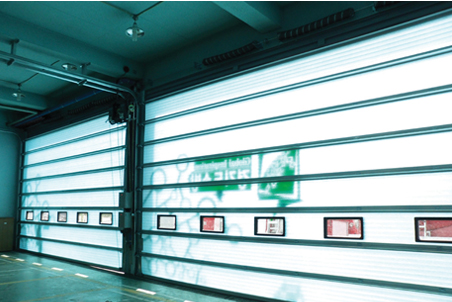

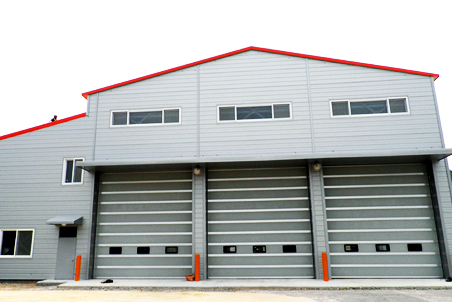

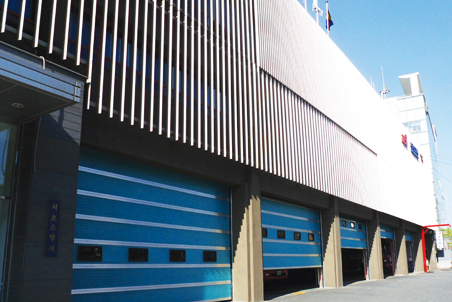

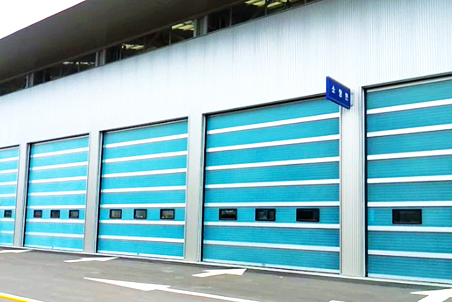

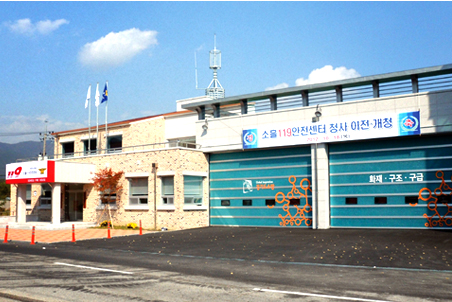

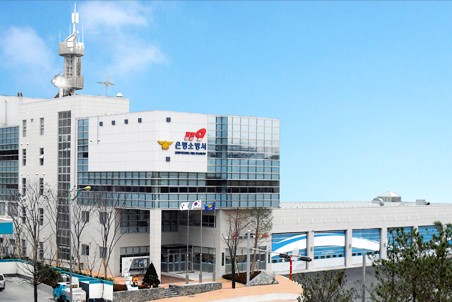

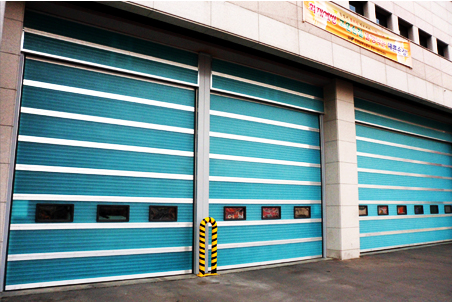

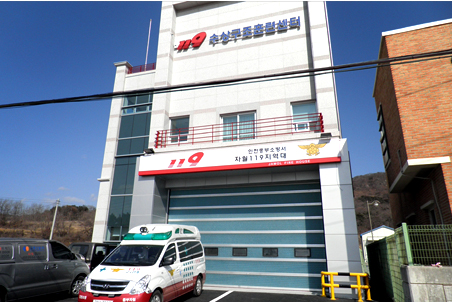

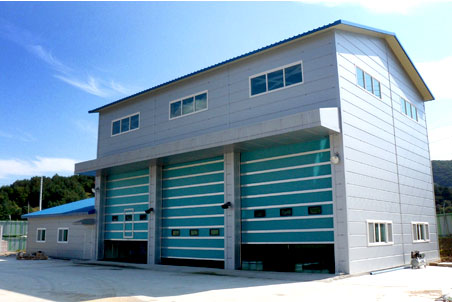

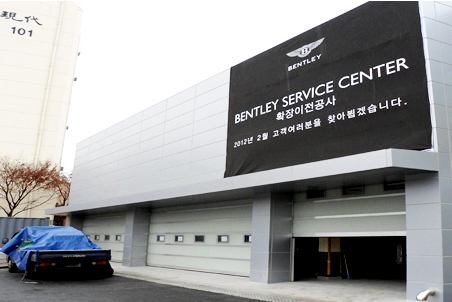

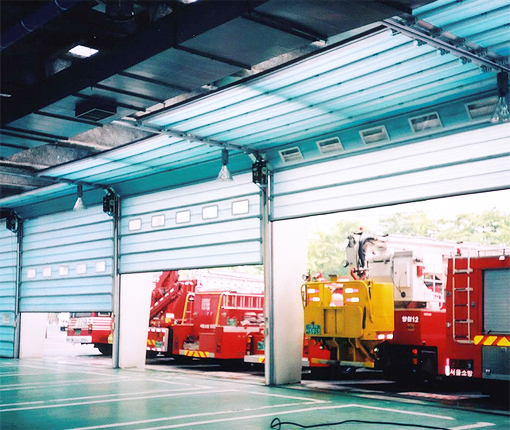

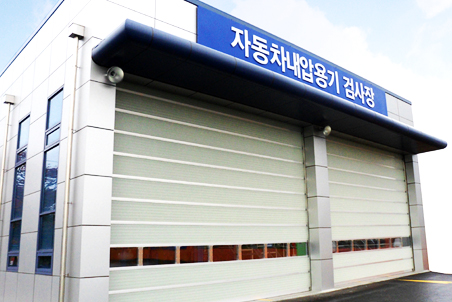

These products are being used in structures which require high levels of natural lighting and efficient insulation, such as fire stations, maintenance facilities, hangars, postal distribution centers and factories, while its looks and its excellence in natural lighting abilities has made our overhead doors to become a part of more and more architectural design structures.
BK 900 SERIES
Characteristics

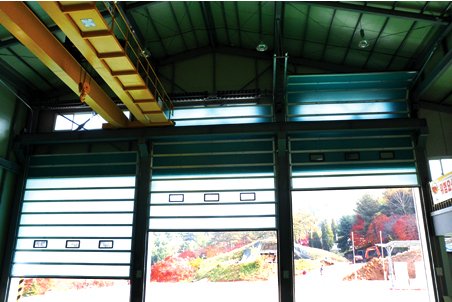

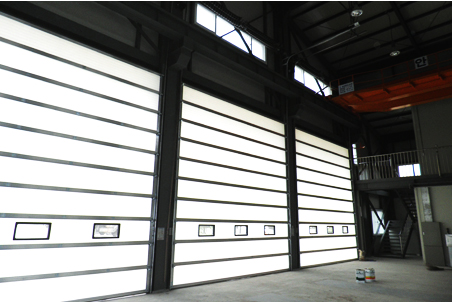

Utilizing the high light penetration qualities of FIBERGLASS, the door lets through up to 70% of light, which enables the workspace to stay well lit, even while the door is shut. The panel eliminates shadowing by evenly refracting and radiating light Safety.The double-layered strengthened polyester fiberglass production has passed European safety regulations. Its high impulsive tensile modulus makes it suitable for large open access points, while the chemical properties of fiberglass make it highly resistant to saltwater, sea wind and alkaline corrosions, and is rust proof from acid rain and ozone contamination.
Specifications
| PANEL | Blue toned EMBOSSED FIBERGLASS double sided (3mm + 3mm) |
|---|---|
| Thickness | Double Sheet 3mm Trapezoid Link Support 60mm |
| Maximum Safe Allowance | (w) 10,000mm x (h) 7,000mm |
| Unit Weight | 12kg/m2 |
| DOOR TEST Results |
|
| Design Wind Pressures | 55 m/sec (MOOK-UP test certified) |
